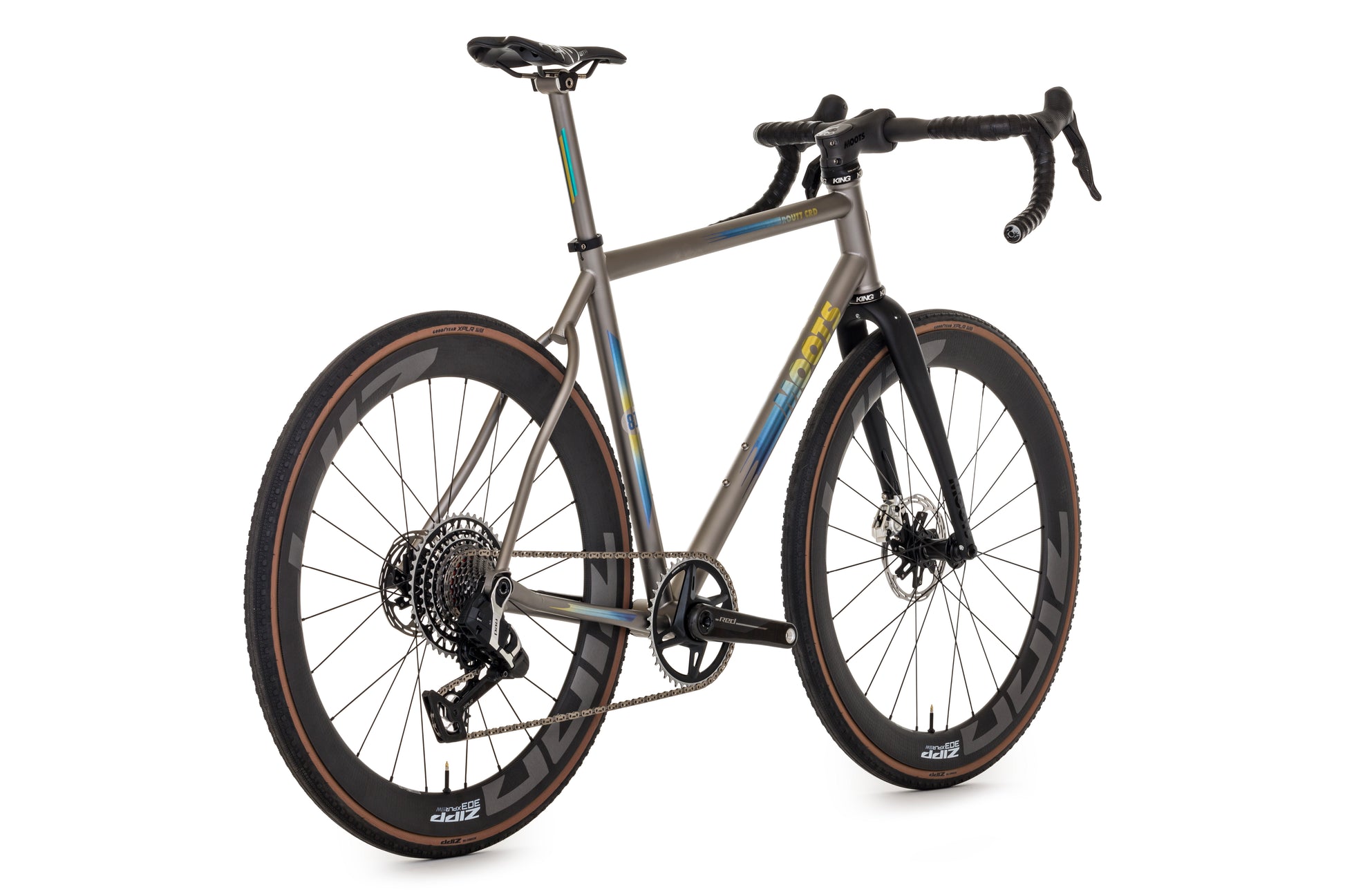

ROUTT CRD

ROUTT CRD

  • Prices starting at $8,799.00 USD

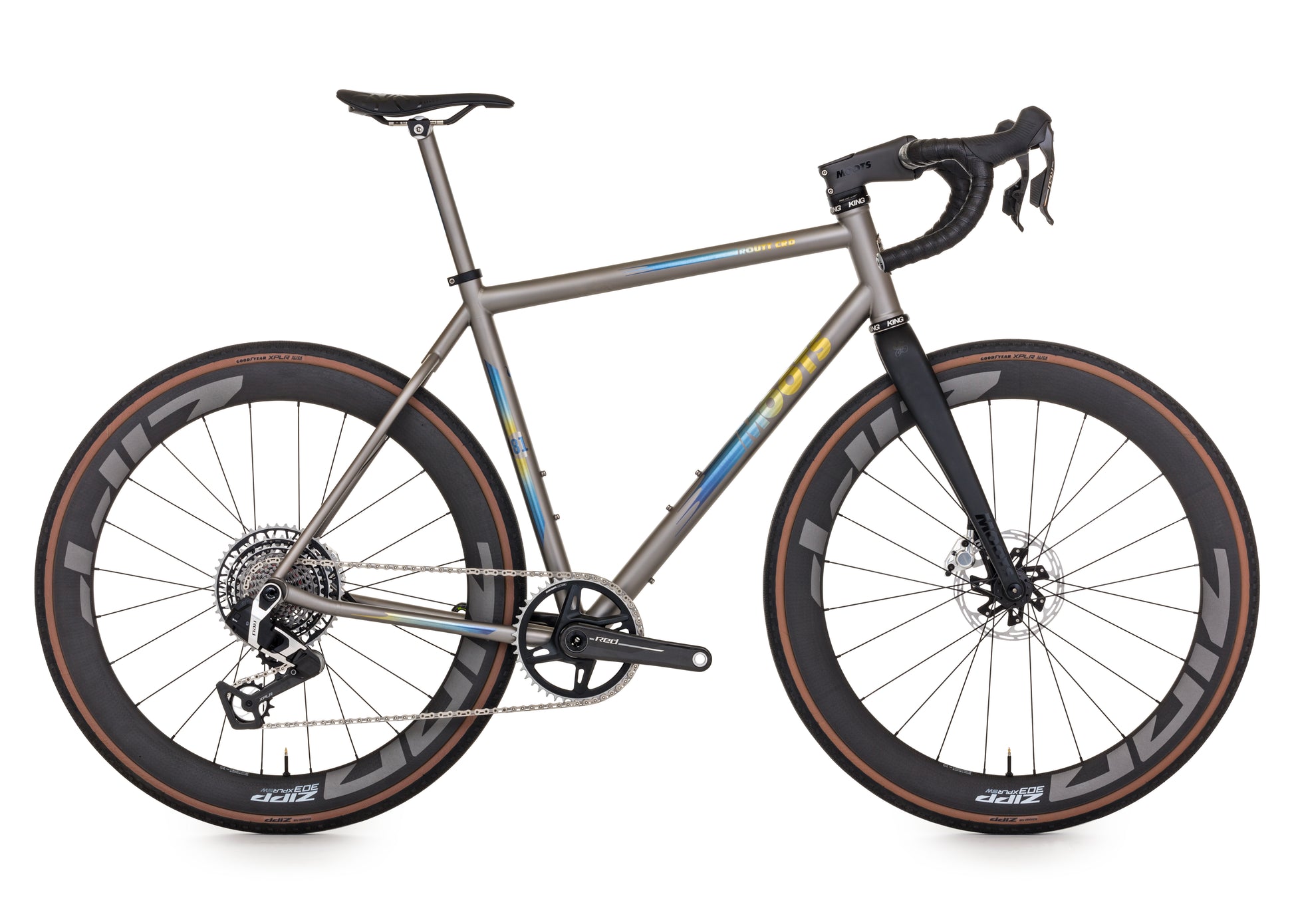

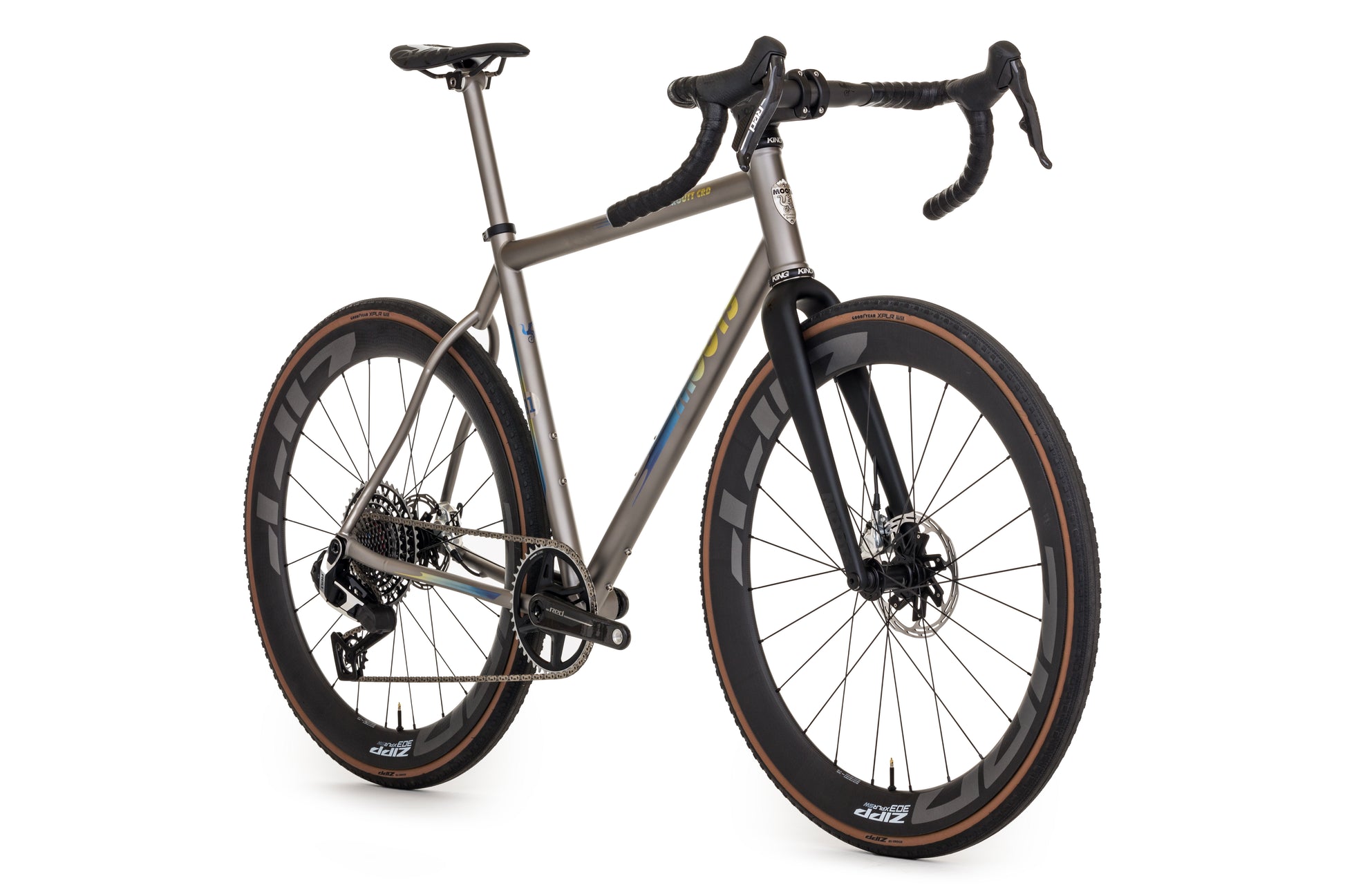

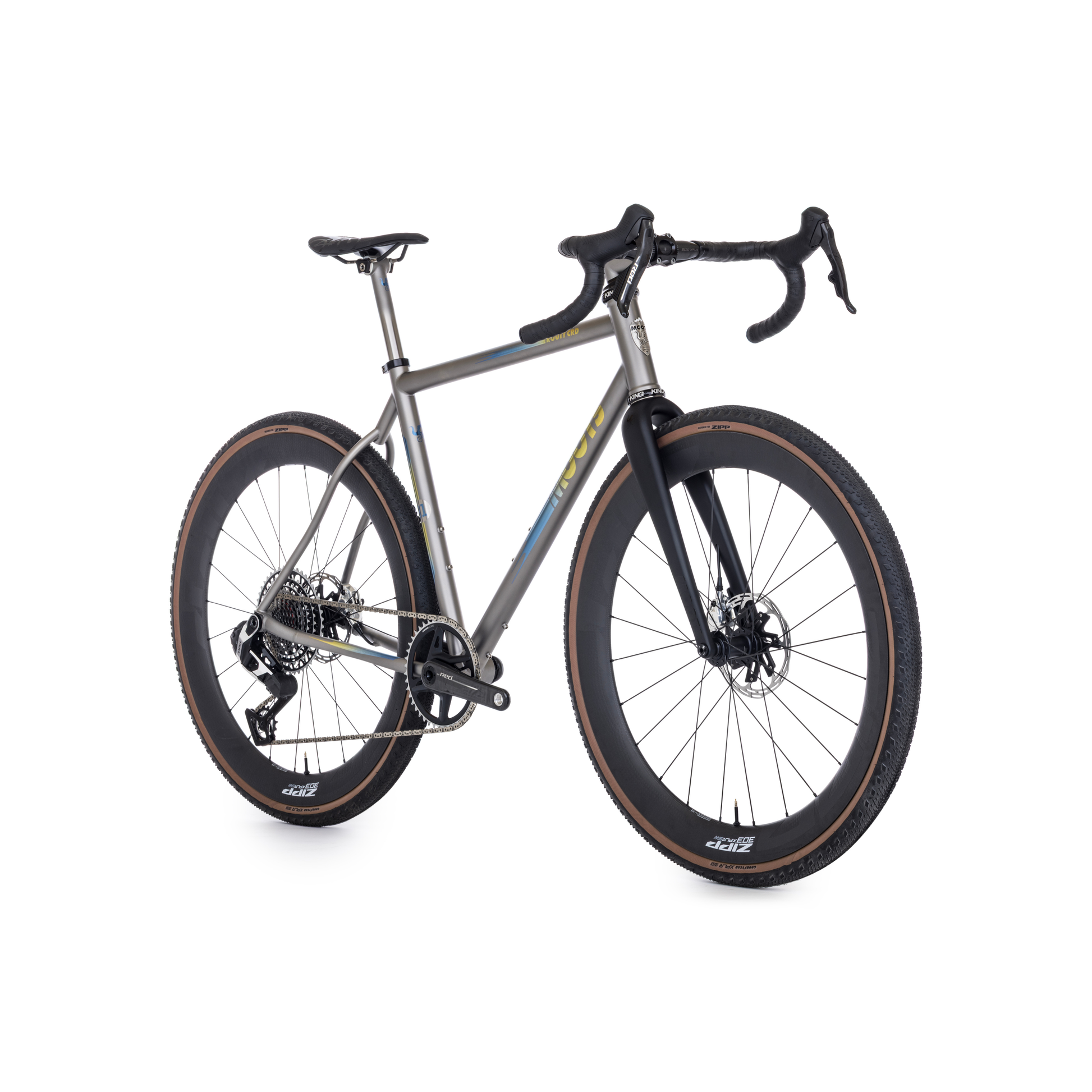

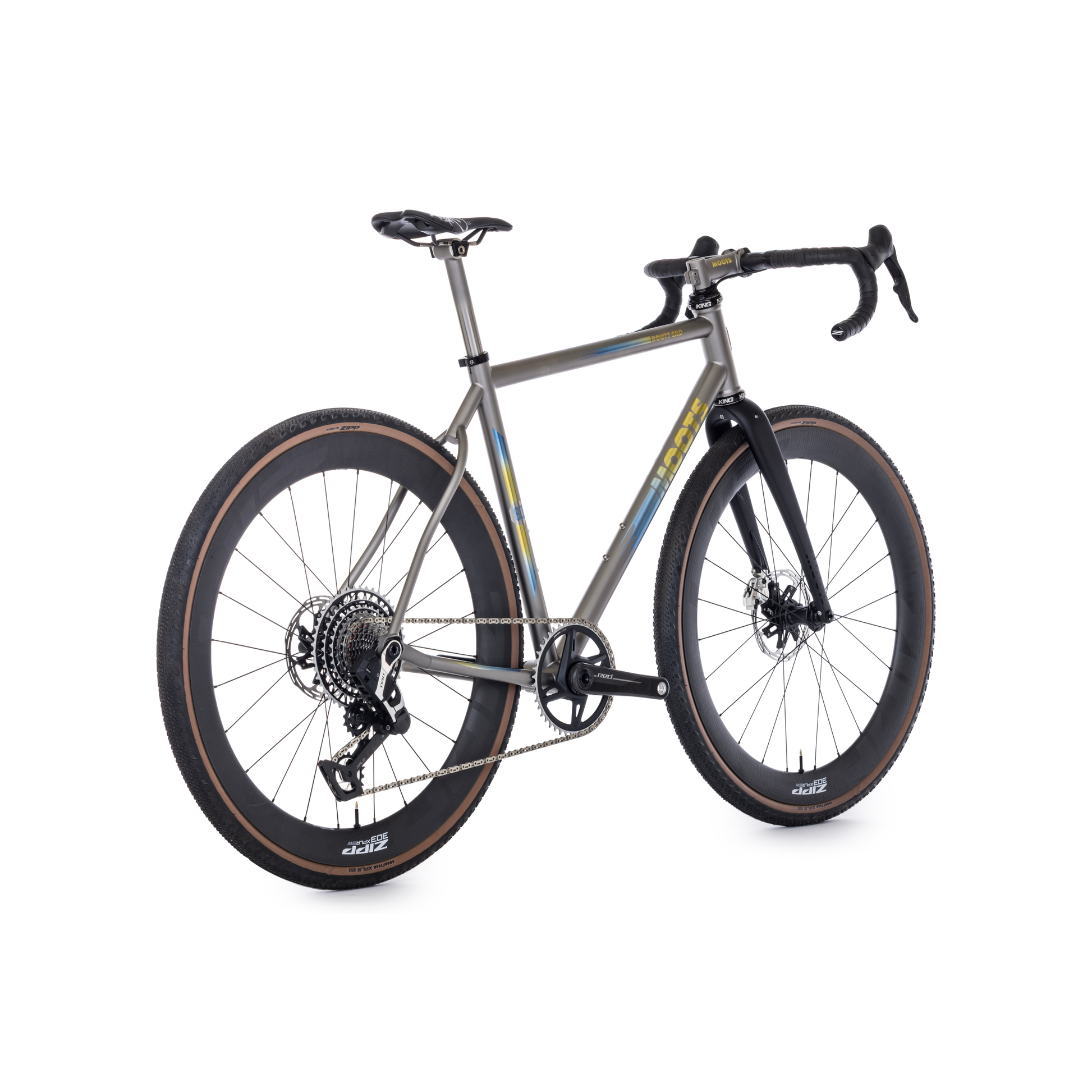

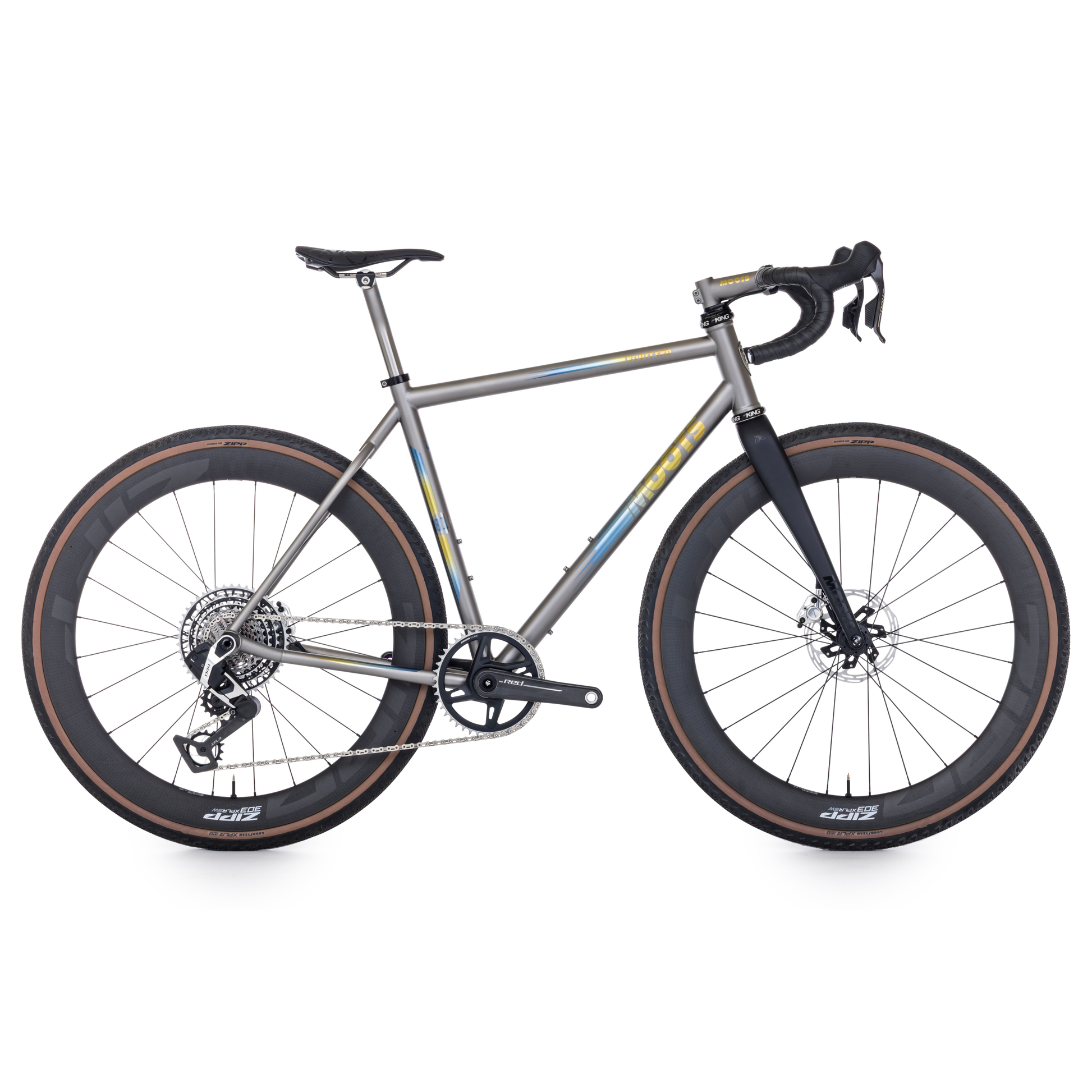

The ultimate titanium expression of gravel speed.

Every line, every weld, every detail is purpose-built to break PRs. Assembled using our Race Super Light (RSL) titanium tube set, the Routt CRD (Complete Race Design) sheds weight without compromise, delivering unmistakable Moots ride quality in its fastest form.

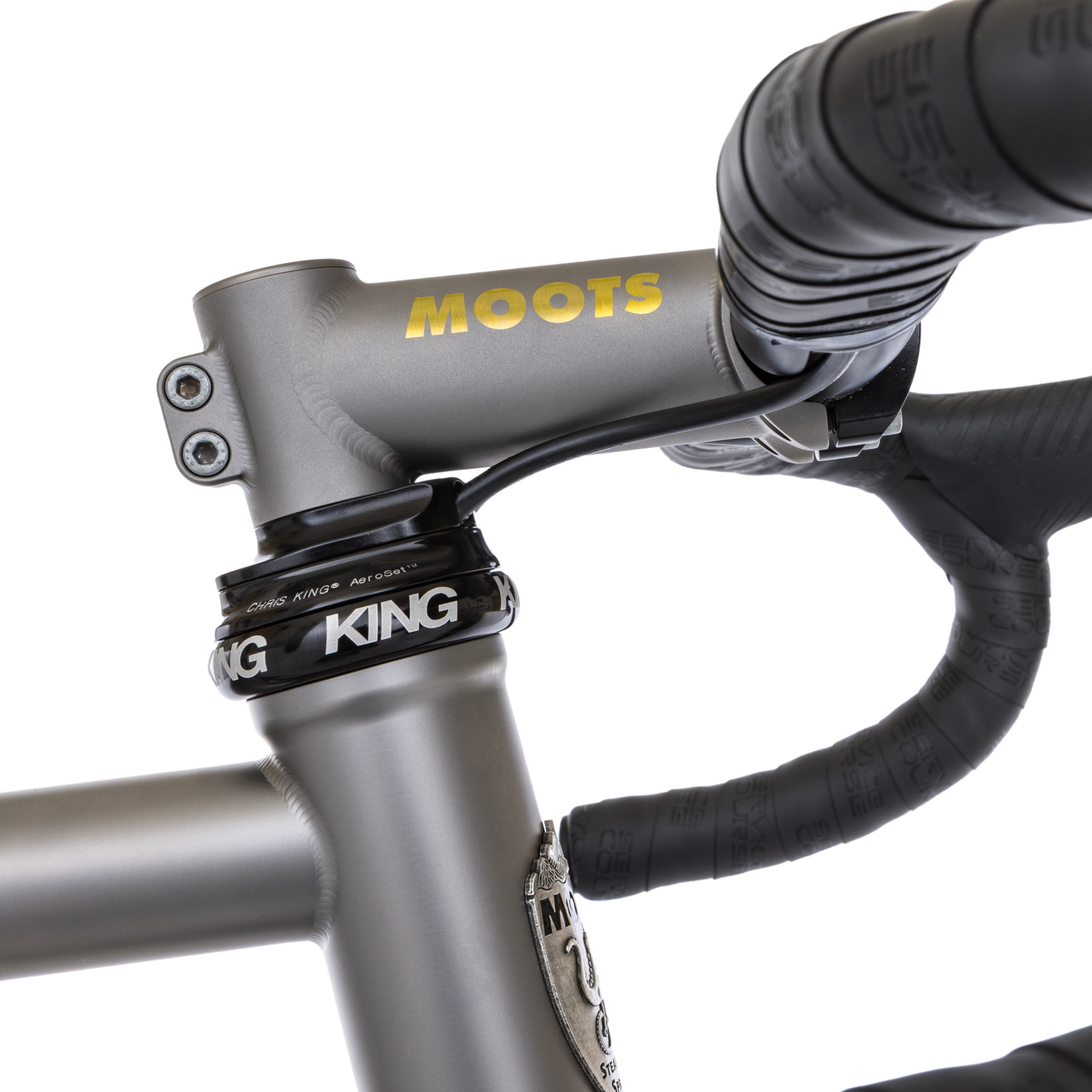

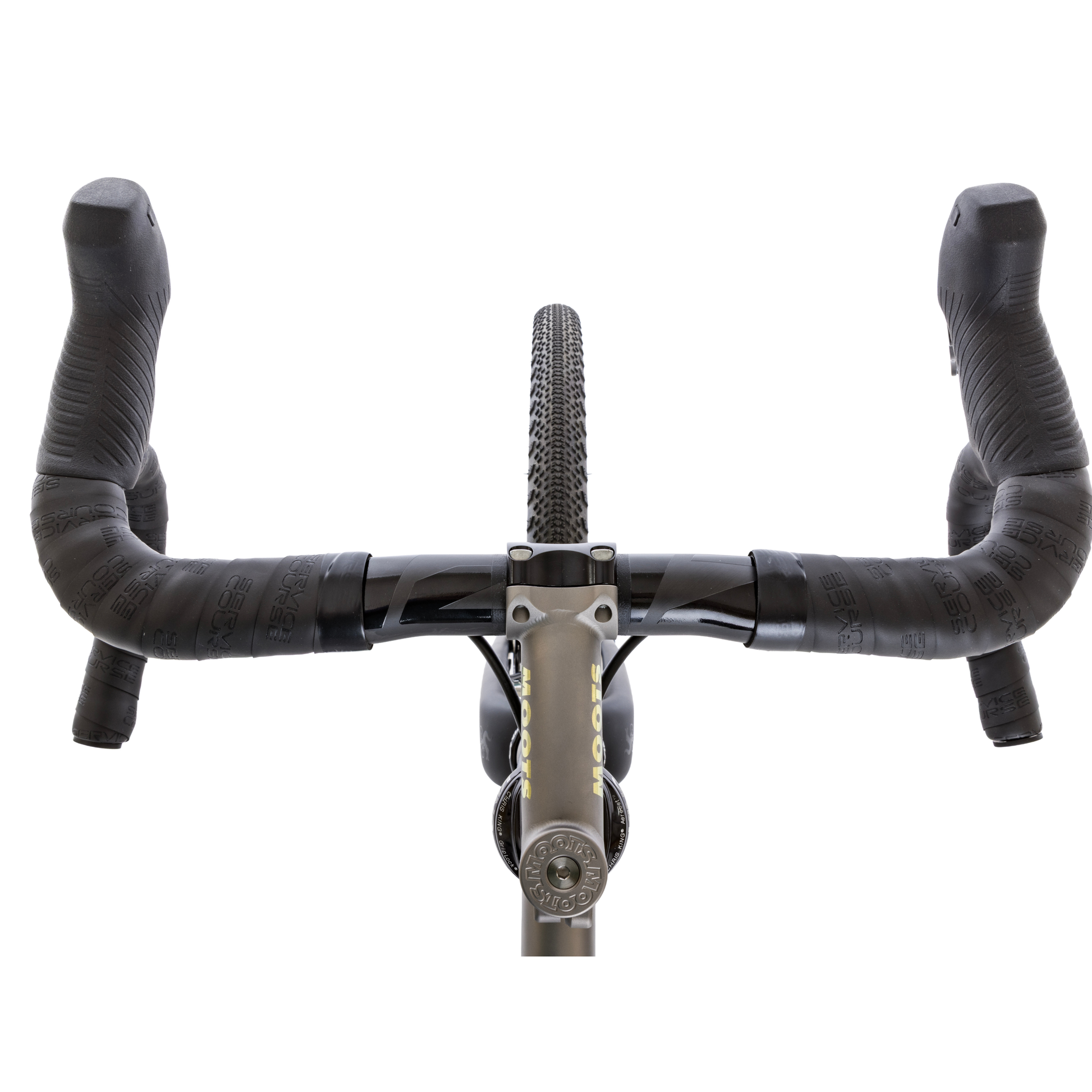

3D-printed dropouts and brake mounts bring exacting alignment to the rear end. A threaded T47 bottom bracket and UDH compatibility ensure lasting serviceability. Up front, a fully integrated cockpit and refined MOOTS gravel fork keep the profile clean, with no visible cables or hoses. Offering up to 45c tire clearance to handle rocks, grit, and unpredictable terrain.

The Routt CRD is precision shaped for riders who demand a more traditional frame geometry that offers speed and durabilty from the artistry and perfection of titanium.

View your Trade-up options Find a dealer near you
View full details
Features

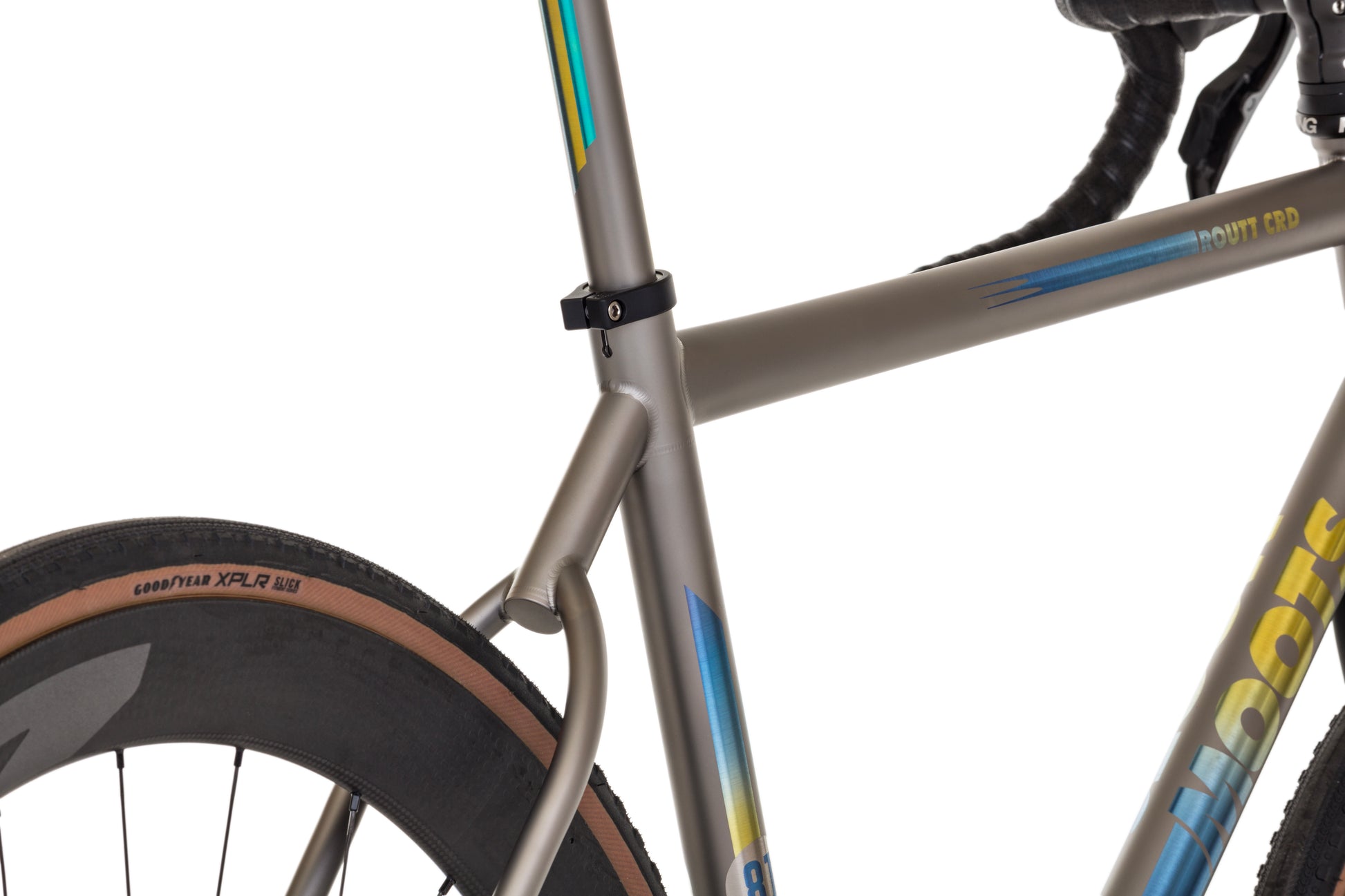

RSL Double-Butted Tubeset

Our lightest titanium tubeset, thinner in the middle to shed weight and thicker at the ends to provide support and preserve the balanced ride quality MOOTS is known for.

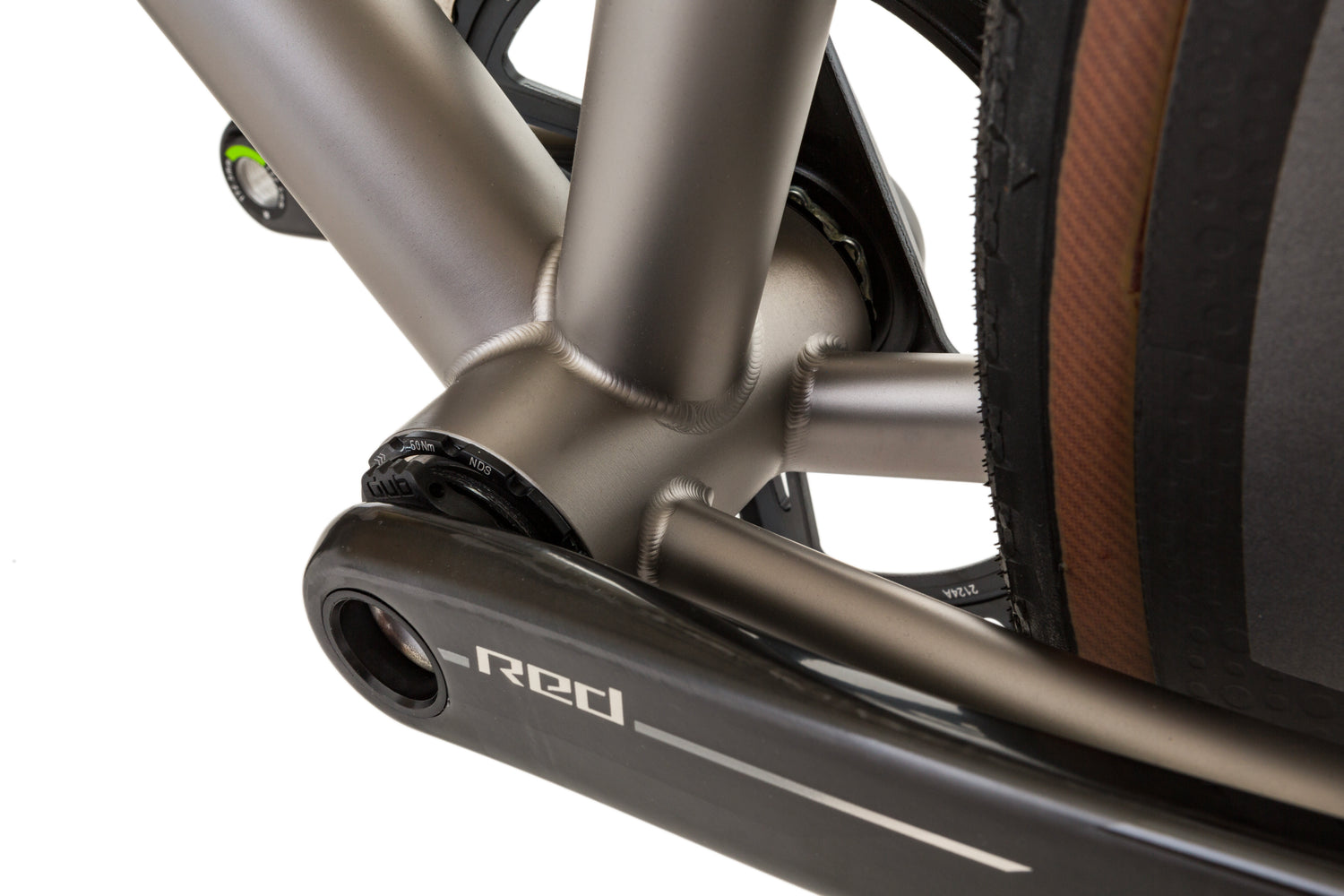

T47 Bottom Bracket

T47 bottom bracket offers a threaded design for improved durability and ease of maintenance, providing a secure and precise fit for your crankset with enhanced stiffness for better power transfer.

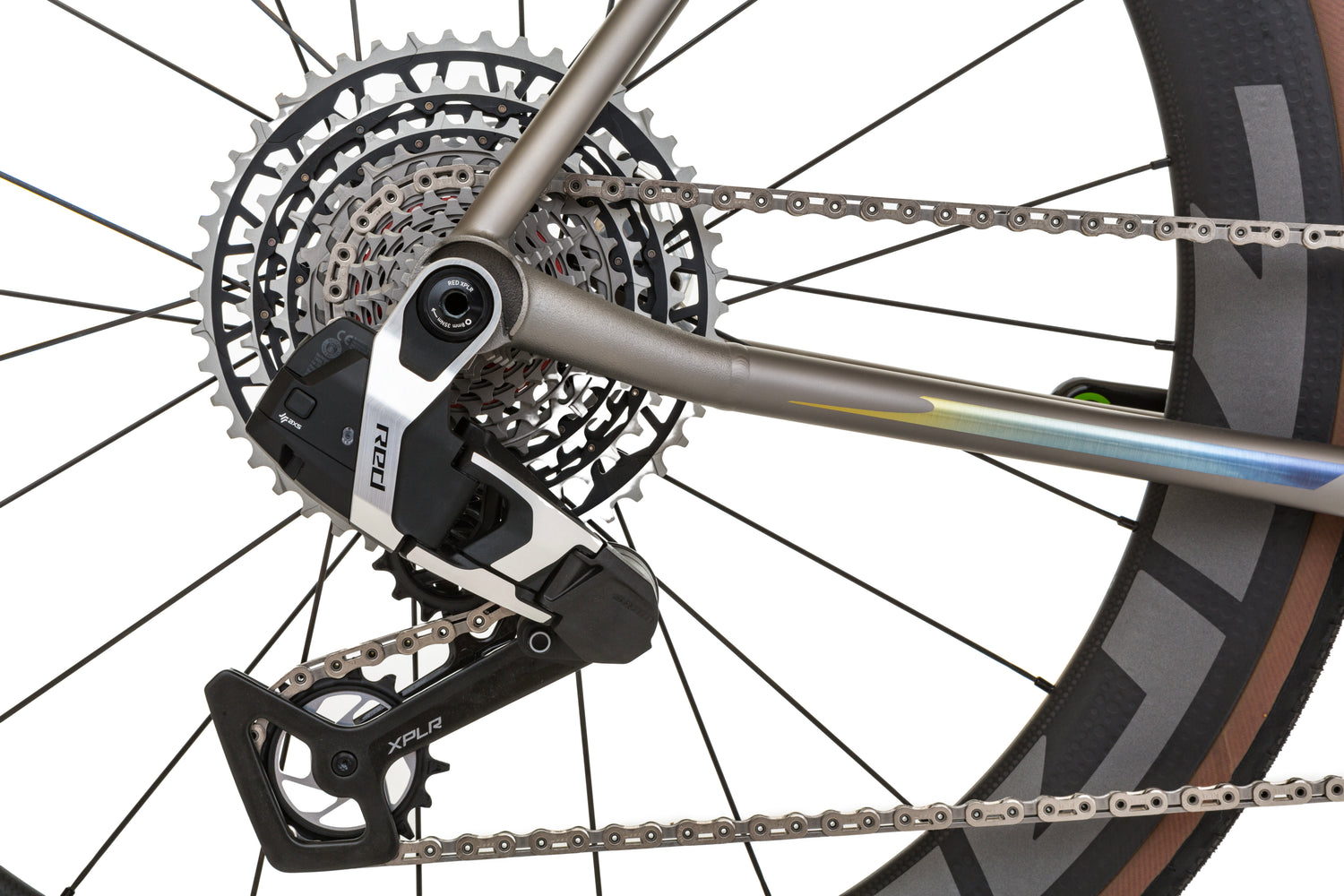

3D-Printed UDH Dropouts

Precision 3D-printed titanium dropouts with flat-mount disc mounts for exact brake, rotor, and axle alignment. Fully UDH (Universal Derailleur Hanger) compatible.

Frame Specifications

ROUTT CRD

Technical Specifications
Head Tube:
44mm
Bottom Bracket:
T47
Seatpost:
27.2
Derailleur Clamp:
34.9
Rear End Spacing:
142x12 Thru-Axle
Max Tire Clearance:
45c
Water Bottle Locations:
3
Fender Eyelets:
Lower, Mono Stay and BB (Optional)
Chainline:
Gravel Wide

Geometry
Frame Size (cm) Effective TT (cm) Seat Tube (cm) Head Tube (cm) Head Angle Seat Angle BB Drop (cm) Chainstay Length (cm) Stand Over (in) Stack Reach
50 52.0 46.0 12 71.0° 75.0° 7.1 43.0 29.5 575.0 362.0
52 53.0 48.0 13 71.0° 74.25° 7.1 43.0 30.0 585.0 362.0
54 54.5 51.0 14 71.5° 74.0° 6.9 43.0 30.8 594.0 372.0
55 555.0 52.0 15 71.5° 73.5° 6.9 43.0 31.2 603.0 374.0
56 56.5 53.0 15 71.5° 73.5° 6.9 43.0 31.6 615.0 379.0
58 59.0 55.0 17 72.0° 73.0° 6.9 43.0 32.1 624.0 398.0
60 60.5 57.0 19 72.25° 72.75° 6.8 43.0 33.9 644.0 405.0

Compare

You are currently viewing
ROUTT CRD

ROUTT CRD

Prices starting at $8,799.00

Intended use: High-performance gravel racing, fast gravel group rides, lively feel, clean aesthetics.

Sizes: 50, 52, 54, 55, 56, 58, 60

Material: Internally butted 3al/2.5v titanium tubing, 3d printed UDH dropouts, T47 BB

Tire Clearance: 45c

View Bike
ROUTT YBB

ROUTT YBB

Prices starting at $6,199.00

Intended use: Extra comfort for endurance gravel rides, big mileage events, bikepacking, touring.

Sizes: 52, 54, 55, 56, 58, 60

Material: US sourced 3al/2.5v straight gauge titanium tubing, 3d printed brake mount, UDH dropouts, BSA BB

Tire Clearance: 50c

View Bike
ROUTT RSL

ROUTT RSL

Prices starting at $7,249.00

Intended use: Lively feel, spirited gravel rides, versatility, racing, group rides, discovery.

Sizes: 50, 52, 54, 55, 56, 58, 60

Material: Moots/Reynolds internally butted 3al/2.5v titanium tubing, 3d printed UDH dropouts, BSA BB

Tire Clearance: 50c

View Bike
ROUTT 45

ROUTT 45

Prices starting at $5,999.00

Intended use: Everyday gravel rides, group events, utility use, bikepacking, touring.

Sizes: 50, 52, 54, 55, 56, 58, 60

Material: US sourced 3al/2.5v straight gauge titanium tubing, 3d printed brake mount, UDH dropouts, BSA BB

Tire Clearance: 50c

View Bike
