VAMOOTS CRD

VAMOOTS CRD

  • Prices starting at $8,899.00 USD

A road-racing elite ride that lasts a lifetime.

At the pinnacle of our road line, the Vamoots CRD (Complete Race Design) is built from our double-butted RSL (Race Super Light) titanium tube set for a frame that’s light, responsive, and smooth in every detail. 3D-printed dropouts add stiffness and perfect brake alignment, while slim seat stays bring the balanced comfort MOOTS riders expect.

A fully integrated cockpit and T47 bottom bracket keep cables tucked away for a clean, functional design. With room for 32c tires, the Vamoots CRD is at home pushing the pace, holding a line, and carrying you through mile after mile of pavement.

View your Trade-up options Find a dealer near you
View full details
Features

RSL Double-Butted Tubeset

Our lightest titanium tubeset, thinner in the middle to shed weight and thicker at the ends to provide support and preserve the balanced ride quality MOOTS is known for.

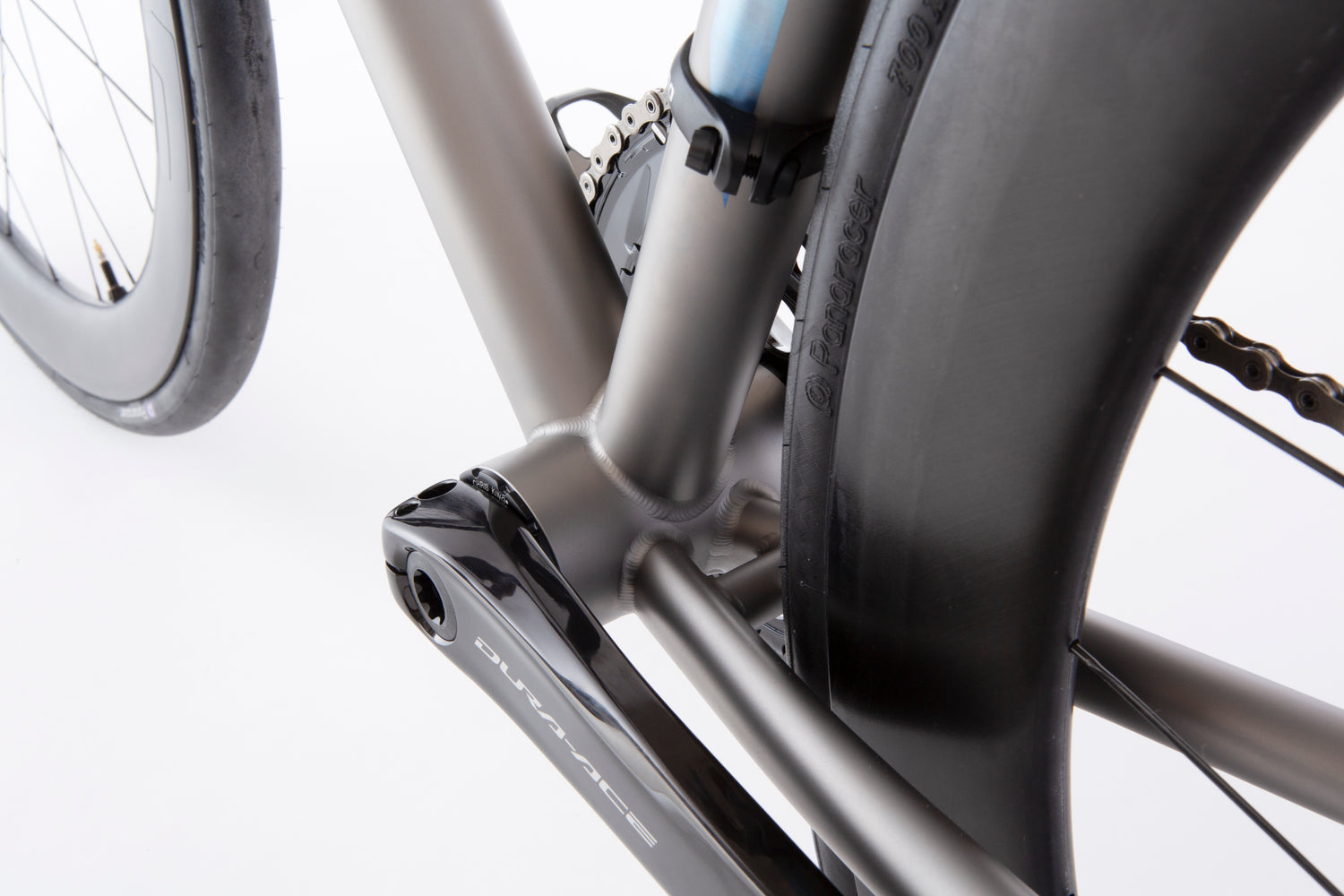

T47 Bottom Bracket

T47 bottom bracket offers a threaded design for improved durability and ease of maintenance, providing a secure and precise fit for your crankset with enhanced stiffness for better power transfer.

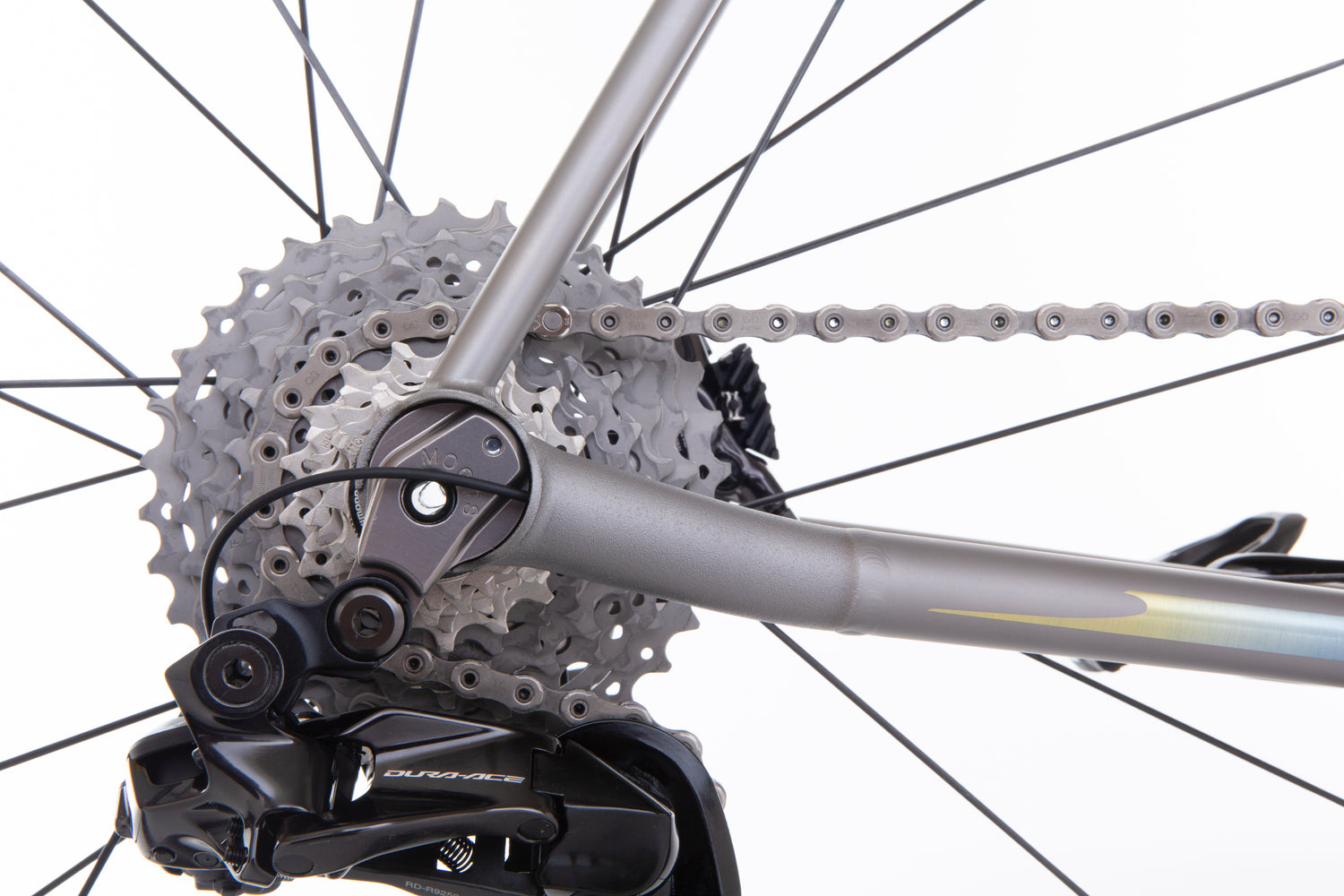

3D-Printed Dropouts

Flat-mount disc mounts create accurate alignment between brake caliper, rotor, and axle.

Frame Specifications

VAMOOTS CRD

Technical Specifications
Head Tube:
44mm
Bottom Bracket:
T47 86.5mm Threaded
Seatpost:
27.2
Derailleur Clamp:
34.9
Rear End Spacing:
142x12 Thru-Axle
Max Tire Clearance:
32c
Water Bottle Locations:
2
Fender Eyelets:
Chainline:

Geometry
Frame Size (cm) Effective TT (cm) Seat Tube (cm) Head Tube (cm) Head Angle Seat Angle BB Drop (cm) Chainstay Length (cm) Stand Over (in) Fork Rake (mm) Stack Reach
48 49.5 45.0 10 71.0° 75.0° 7.4 41.0 28.5 50.0 535.5 347.7
50 51.0 48.0 11 71.5° 75.0° 7.4 41.0 29.3 50.0 546.8 360.1
52 53.0 50.0 12 72.0° 74.5° 7.2 41.0 30.0 50.0 558.3 372.7
54 54.5 52.0 13 72.5° 74.0° 7.2 41.0 30.7 43.0 569.6 380.2
555 53.0 14.0 14 72.75° 73.75° 7.2 41.0 31.1 43.0 580.1 384.9
56 56.5 54.0 15 73.0° 73.5° 7.2 41.0 31.5 43.0 590.5 389.6
58 57.5 55.0 16 73.25° 73.0° 7.2 41.5 31.9 43.0 599.0 392.1
60 59.0 57.0 18 73.5° 72.75° 7.0 41.5 32.7 43.0 619.0 398.5
62 60.5 59.0 20 73.75° 72.75° 7.0 41.5 33.5 43.0 639.1 407.5

COMPLETE YOUR SETUP

1 15

What Our Customers Say

“I fell in love. It’s incredibly light and capable, but, most importantly, it pedals pleasantly whether you’re climbing or descending.”

John Watson

The Radavist | Santa Fe, NM

“The Routt YBB is the ultimate smooth riding gravel bike, just enough to take the edge off everything.”

M. Loomis

Port Townsend, WA

“The Vamoots CRD is an absolute performer that would serve as both a capable road racer and endurance steed alike.”

CyclingWeekly

Oct 2022

The Moots Difference

For over four decades, Moots has set the standard in titanium bike manufacturing. We don’t mass-produce. We don’t compromise. We build bikes the right way—by hand, by riders, for riders.

Crafted in Colorado

Every frame is welded and finished in our Steamboat Springs facility by skilled builders and riders.

Titanium Performance

Unmatched ride quality, strength-to-weight ratio, and long-term durability—perfected over decades.

Lifetime Durability

Moots titanium frames are backed by a limited lifetime warranty, ensuring confidence in every ride.

Rider-First Fit & Finish

Custom fit options and precision geometry deliver elite-level performance tailored to you.

FAQs

Answers to common questions about MOOTS bikes

OUR BIKES

Are your bikes available as complete builds or framesets only?

Both. You can purchase a frameset or work with us to build a complete bike tailored to your ride style. Our direct-to-consumer team can walk you through every detail.

Can I customize my Moots?

Yes. Finish options, accent colors, cable routing, component specs, and geometry tweaks are available depending on the model.

Can I customize my Moots components?

We offer a number of anodized aluminum accent colors and unique finishes that are available on Moots stems and seatposts

Can I demo a Moots bike?

Yes! We host events and demo experiences across the country—and right here at our HQ in Steamboat Springs.

How do I choose the right Moots bike for me?

Reach out to our team—we’ll help you find your forever bike.

What makes a Moots bike special?

Moots bikes are hand-built in Steamboat Springs, Colorado, from the highest-grade U.S.-sourced titanium. With over 40 years of craftsmanship behind every weld, Moots bikes are designed to last a lifetime—offering a ride quality that’s smooth, responsive, and timeless.

WARRANTY

Can I get replacement decals or touch-up support?

We no longer offer decals, but, we are happy to walk you through the Moots Magic Makeover.

How do I submit a warranty claim?

Contact us at warranty@moots.com with photos, your original order info, and a description of the issue.

What’s your warranty policy?

Moots frames are backed by a Lifetime Warranty for the original owner, covering any manufacturing defects. Component warranties are handled by the original manufacturers.

ORDERING

Do you sell directly to consumers?

Yes. Moots bikes are available both direct-to-consumer and through our trusted global network of dealers.

Do you ship internationally?

Absolutely. We ship worldwide. International orders may be subject to additional shipping fees, duties, and taxes.

How long does it take to get a Moots bike?

Standard builds typically ship in 6–8 weeks. Custom orders may take longer depending on complexity.

CARE

How should I clean my titanium frame?

water, mild soap, and a soft cloth do the trick. Avoid abrasive cleaners. For brushed finishes, we recommend using a green Scotch-Brite pad to restore the original luster—just follow the grain of the tube.

Torque specs for MOD stem

4-6 Nm

What’s the best way to protect the frame finish?

Clear frame protection tape in high-wear areas is a great preventative measure. We also offer etched finishes that hide wear better than polished or painted surfaces.
